Avoid Costly Mold Damage Before It Happens

In injection molding, even a small mistake can lead to expensive consequences. A part left in the cavity, a broken ejector pin, or a foreign object inside the mold can cause serious damage when the mold closes.

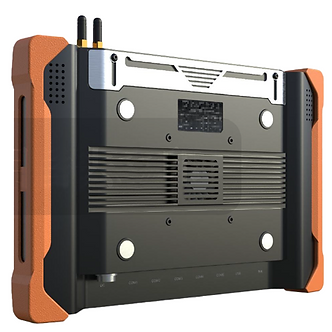

The MC5000 Mold Monitoring System helps manufacturers monitor the mold area during every production cycle. Using industrial cameras and image processing technology, it checks critical mold conditions before mold closing and alerts operators when abnormalities are detected.

By identifying problems at an early stage, the system helps reduce downtime, protect valuable molds, and improve production consistency.

​

Typical Detection Functions

The MC5000 can be configured to detect:

• Parts remaining in the cavity

• Short shots and incomplete molded parts

• Foreign objects inside the mold

• Broken or damaged pins

• Ejector return errors

• Slider position abnormalities

• Product presence and positioning

When an abnormal condition is detected, the system can trigger an alarm or stop the machine automatically.

​

Why Use a Mold Monitoring System?

Mold Protection

Prevent damage caused by trapped products, broken mold components, or foreign materials during mold closing.

Reduced Downtime

Detect issues immediately instead of discovering them after a mold crash or production interruption.

Better Product Quality

Identify molding defects early and prevent defective parts from progressing through production.

More Stable Production

Reduce operator dependency and improve consistency from shift to shift.

​​​​​​​​​​​​​​​​​​​​​​​​​​

Main Features

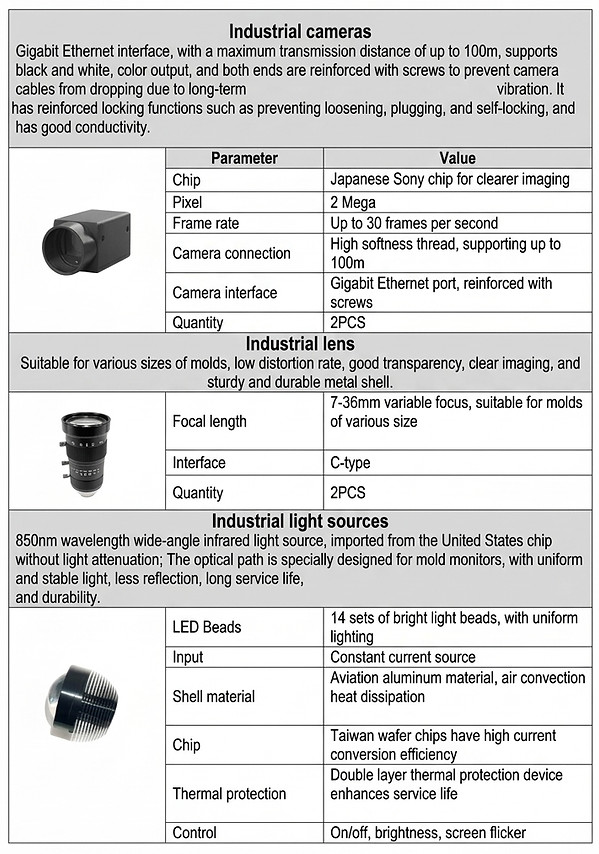

• High-resolution industrial camera system

• Real-time mold inspection

• Automatic alarm functions

• Machine stop signal output

• User-friendly touch screen interface

• Flexible installation for different mold sizes

• Production record and image storage

​

Application Fields

The MC5000 is suitable for a wide range of molding applications, including:

• Plastic Injection Molding

• Automotive Components

• Consumer Products

• Electronic Components

• Medical Parts

• Packaging Products

• Technical Engineering Plastics

​

A Small Investment Compared to Mold Repair Costs

A single mold accident can result in production delays, repair costs, and lost output.

The MC5000 helps manufacturers reduce these risks by providing continuous visual monitoring throughout the molding process, giving operators greater confidence and protecting valuable tooling assets.​

​
